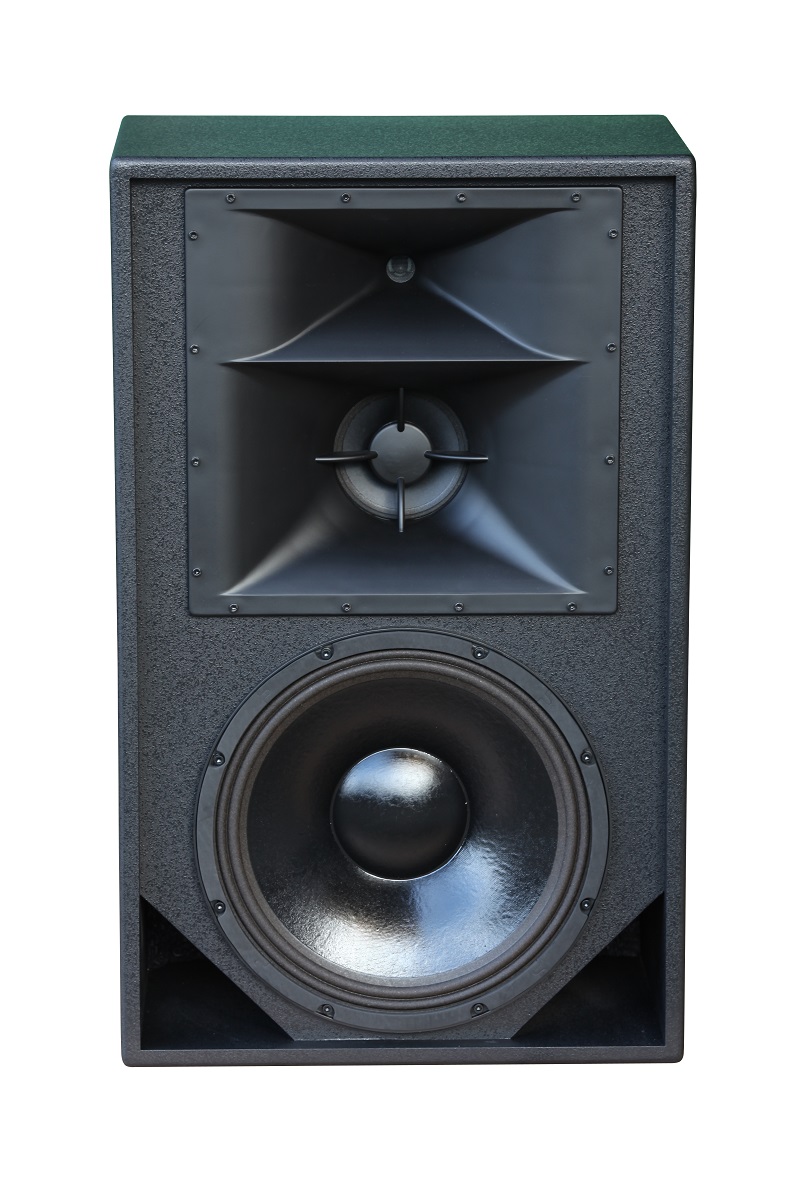

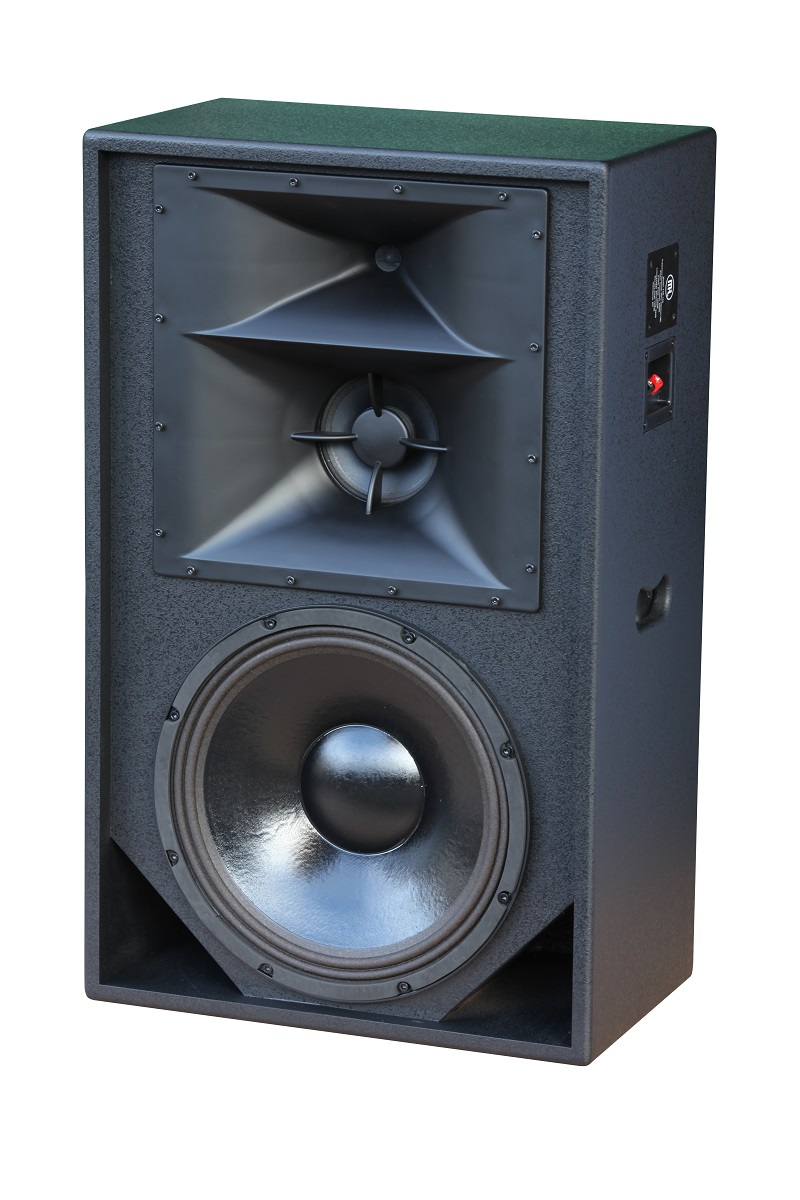

TXB-15A

PRODUCT INTRODUCTION

OEM/ ODM DESIGN

Type: cinema speaker

Acoustic system:bass reflex

Power: 500W



TXB-15A
Units :1x15" bass woofer ( U.S. imported RDM cone, Aluminum cone 4" EISV,Symmetrically balanced external winding wire high temperature resistant voice coil)

1x6.5" Midrange woofer (U.S. imported RDM cone, Aluminum cone 1.5" EISV,Symmetrically balanced external winding wire high temperature resistant voice coil)

1x 1" tweeter (1.5" EISV ,Symmetrically balanced external winding wire high temperature resistant voice coil,original imported polymeric  membrane )

Rated power 500W
Peak power 2000W
Frequency range 30Hz-20KHz(±3dB)
Impedance 8ohm
Sensitivity 99dB
Enclosure MDF
Enclosure finish black grain paint
Driver and woofer 1x15" bass woofer + 1x6.5" Midrange woofer + 1x 1" tweeter
N.W 39kgs/pc
G.W 43kgs/pc
Product size 770 X475 X320mm
